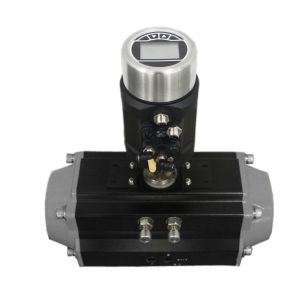

1600 Series Top Thread Mounted Smart Electro-pneumatic Valve Positioner for Rotary Actuators

​1. Product Description

1600 Series compact positioner is optimized for integrated mounting on the pneumatic actuators in the process valve and is specially designed for the requirements of a hygienic process environment. The control air channel is integrated in the actuator without external tubings. The easy handling and the selection of additional software functions are done either on a big graphic display with keypad. The control of single or double-acting actuators is done without internal air consumption. The housing is easy to clean and features proven IP protection and chemically resistant materials for use in hygienic processing, in food & beverage and pharmaceutical industries.

​2.Technical Datas

3. Product type selection

4. Inferface angle adjustment

The angle can be adjusted between the positioner and the valve. If need to adjust the interface angle, relaxing the hexagon screw in place A first. Then adjusting the angle clockwise or counter-clockwise in 180°range. After adjusting the angle, locking the angle by the hexagon screw.

5. Electrical connections and pneumatic connections

6. Additional software functions

• Setting safety position for the position controller
• Configuration of signal level fault detection
• The binary outputs activating
• Configuration of the outputs
• The control parameters calibrating
• Manual control rate setting
• Code protection
• Selection of the transfer characteristic between set-point value and stroke
• Sealing function for position controller
• Effective sense of direction between input signal and set-point value
• Limit of the machanical stroke range
• Control parameters setting

As the High-Tech corporation with independent intellectual-property and core technologies, we are concentrating on the smart valve positioner's R & D , production and management.

Company Profile

Founded in 2010, POWERFLOW Control Co., Ltd is located in XiHu District, HangZhou. We are the first company who successfully designed top mounted linear smart valve positioner.

In 2014, POWERFLOW Control Co., Ltd was identified as one of Hangzhou High-tech enterprises. In recent years, our company has developed 1500, 1600, 1880, IP6000 and other series of valve positioner products, and provides timely and reliable after-sales service.

Productivity

Since 2013, we have produced a total of tens of thousands of positioners. We control our lead time in 10 days for every order under 50 Nos.

Application

As our company continues to develop and expand the product range. Our positioners can cover almost all valve types and industrial application needs. They are used in pharmaceutical, food & beverage, petrochemical and other fields.

• 1500 series, with LED display, one key start-up, IP67 protection class. It’s extremely popular in textile industry.
• 1600 series, with LCD display, rich functions, Ex nA explosion proof. It’s widely used in pharmaceutical, food & beverage industry, etc.
• 1880 series, with OLED display, compact design, Ex nA explosion proof. It’s widely used in pharmaceutical, food & beverage industry, etc.
• IP6000 series, it’s easy to start up, with Ex ia explosion proof and piezo valves from Germany. It’s suitable for most heavy industries, like petrochemical industry.

Powerflow has lots of patents of all our positioners, and set an independent innovation goal of design at least a new product each year. After 10 years of development, POWERFLOW standardized its management and quality systems, obtaining ISO9001-2015, CE, Nepsi, HART Rohs certifications and introducing CRM system.

" Rigorousness, Enthusiasm, Profession " is our tenet. With much devotion, Optimum batteries are ready to fully understand clients' requirements and work out full solutions of flow control for our valuable clients. We are aiming to build a long-lasting and win-win partnership with our worldwide customers.

Powerflow is your best choice to cooperate and your best partner in the world.

We sincerely hope that our products can bring the best value to customers!
