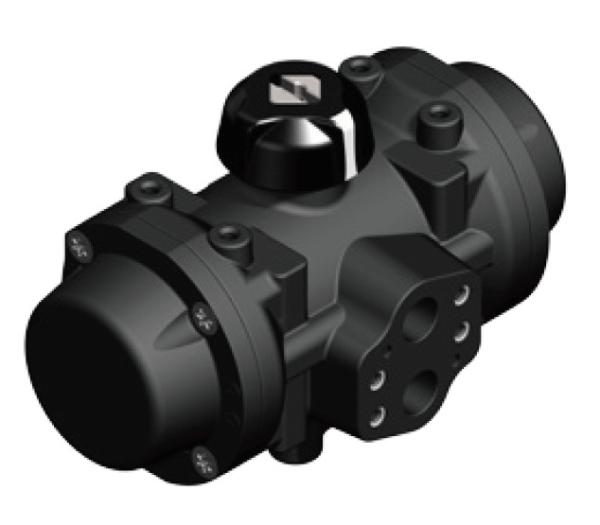

90° Rotation Angle 8 Bar Prisma Pneumatic Actuators

Product Categories

POWERFLOW CONTROL CO,. LTD.

Contact Now

Name: 90 Rotation Angle 8 Bar Prisma Pneumatic Actuators
Brand: PRISMA
Price: 1 USD

Ask Lasest Price
Brand Name :	PRISMA
Model Number :	PP00-PP00S
Certification :	ISO9001. CE. SIL
Price :	Quotation Offered by Email.
Payment Terms :	T/T
Supply Ability :	50Nos/Week for every single Customer.
Delivery Time :	10-15 Days

Add to Cart

Prisma Pneumatic Actuators

1. Technical features

Rotation Angle	0-90°
Torque	From 17 to 165Nm at 6 Bar
Max. pressure	8 Bar
Normal working temperature	-32 - 90℃
Light weight and highly resistant to corrosion	Manufactured in polyamide + glass fiber
Directives	Conformance to: ISO-5211, DIN-3337, VDI/VDE-3845, NAMUR. Peumatic connection according to NAMUR norm, in order to mount solenoid valves easily. Prisma Pneumatic Actuators are manufactured under the requirements of DEP 97-23-EC and ATEX 94-9-EC (EXII2GDc IP67 T6) Directives IEC 61508; SIL3 Certificate
Most relevant features of the new range	A. End caps fitted by stainless Steel Bolts: Increasing the corrosion resistance. B. Preloaded springs: Increasing the security and flexibility to disassemble the end caps; Best to change the function from S.R. to D.A. or vice versa, and to modify the number of springs C. Standardization of the height of the shaft to 20mm for NAMUR accessories. D. New visual indicator, with 4 possible indicating positions. E. Better traceability of cylinder and caps.

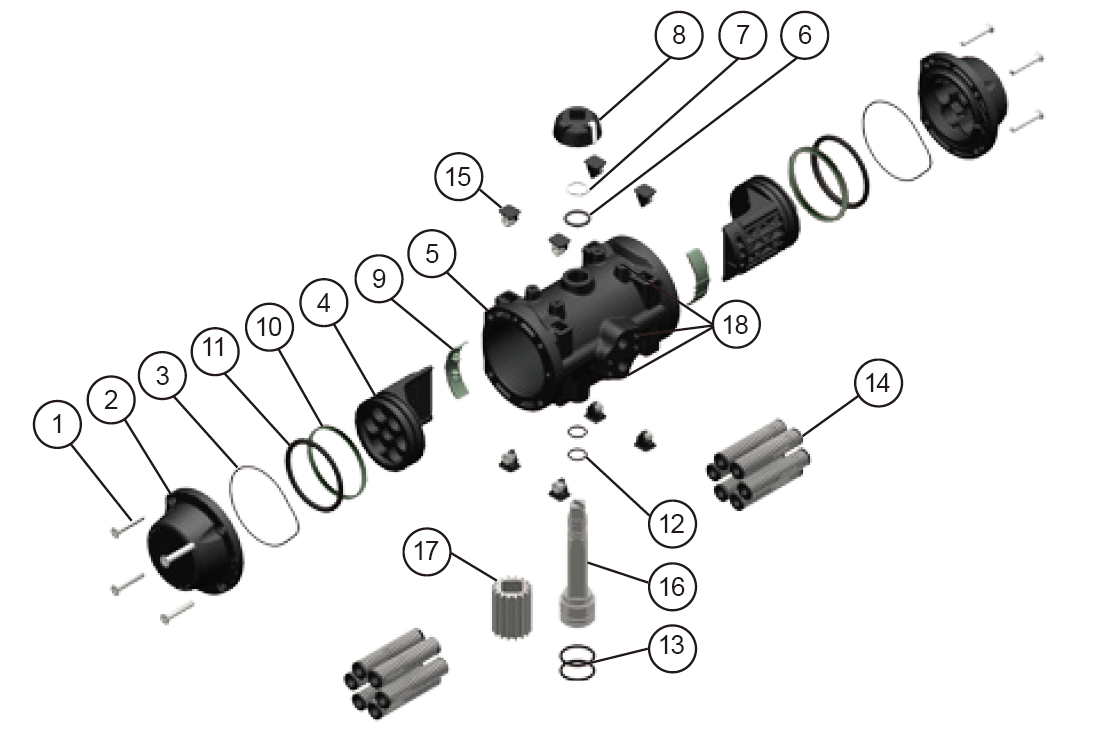

2. Disassembly and materials

N°	DESPRIPTION	QUANT.	MATERIAL
1	CAP COUNTERSUNK SCREW	8	STAILESS STEEL
2	CAP	2	POLYAMIDE+GLASS FIBER
3	CAP O-RING	2	N.B.R.
4	PISTON	2	POLYARILMIDE
5	CYLINDER	1	POLYAMIDE+GLASS FIBER
6	WASHER	1	POLYACETAL
7	SPRING CLIP	1	STAILESS STEEL
8	POSITION INDICATOR	1	POLYAMIDE
9	PISTON GUIDE	2	POLYACETAL(Except PPW)
10	GUIDE RING	2	POLYACETAL
11	PISTON O-RING	2	N.B.R.
12	SHAFT O-RING	2	N.B.R.
13	SHAFT O-RING	2	N.B.R
14	PRELOADED SPRINGS	12	DIN-17223-C(1)(3)
15	PROTECTOR / NUT	8	POLYAMIDE/ AISI-304 SS
16	SHAFT	1	AISI-303 SS/ POLYAMIDE +SS-INSERT(PPW)
17	GEAR	1	ALUMINIUM ALLOY(PP10-PP20)(2)
18	THREAD INSERTS	10	STAILESS STEEL

(1) Variable quantity, please see the spring return torque chart.

(2) Ball burnishing.

(3) Trivalent chrominium passivation

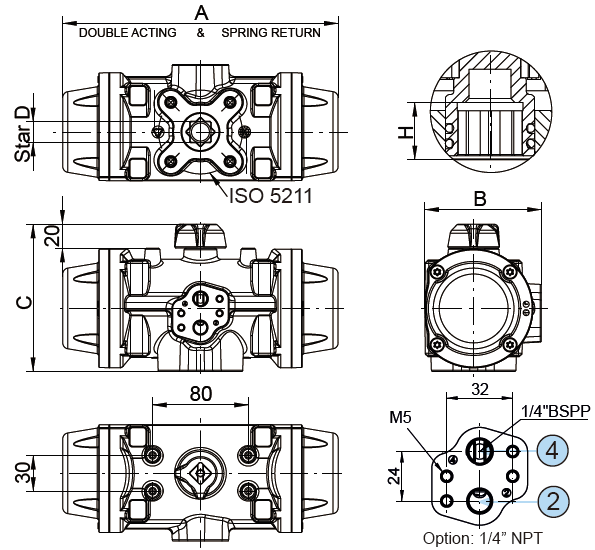

3. Dimension

*Option ISO-5211: F03

4. Torques

DOUBLE ACTING(DA)
MODELS	Air torque at indicated pressure (bar)
MODELS	3	4	5	5.5	6	7	8
PPW	7.9	11.3	14.1	15.5	17	19.8	22.9
PP00	13.3	18.3	23.4	26	28.5	33.6	38.7
PP10	32.9	45.6	58.3	65	71	83.7	96.4
PP20	77.7	107	136.9	150.9	165.5	194.8	224

SPRING RETURN (SR)
MODELS	Spring Number	Spring Torques(Nm)		Air torque at indicated pressure (bar)
		Spring Torques(Nm)		3		4		5		5.5		6		7		8
		Initial	End	Initial	End	Initial	End	Initial	End	Initial	End	Initial	End	Initial	End	Initial	End
PPWS	6+6	10	6.7					7.4	4.1	8.8	5.5	10.3	7	13.1	9.8	16.2	12.9
	5+5	8.5	5.8			5.5	2.8	8.3	5.6	9.7	7	11.2	8.5	14	11.3	17.1	14.4
	4+4	7	4.6	3.3	0.9	6.7	4.3	9.5	7.1	10.9	8.5	12.4	10	15.2	12.8	18.3	15.0
	3+3	5.5	3.6	4.3	2.4	7.7	5.8	10.5	8.6	11.9	10	13.4	11.5	16.2	14.3
	2+2	4	2.4	5.5	3.9	8.9	7.3	11.7	10.1	13.1	11.5	14.6	13
PP00S	6+6	18.8	12.7					10.8	4.6	13.3	7.2	15.9	9.7	21	14.8	26.1	20
	5+5	15.8	10.7			7.6	2.6	12.7	7.7	15.2	10.2	17.9	12.8	22.9	17.9	28	23
	4+4	12.6	8.7			9.7	5.7	14.8	10.8	17.3	13.3	19.9	15.9	25	21	30.1	26.1
	3+3	9.7	6.6	6.6	3.5	11.7	8.6	16.8	13.7	19.7	16.3	21.9	18.8	27	24
	2+2	6.6	4.1	9.1	6.6	14.2	11.7	19.3	16.8	21.9	19.4	24.4	21.9
PP10S	6+6	45.6	30.8					27.5	12.7	34.2	19.4	40.2	25.4	52.9	52.9	38.1	50.8
	5+5	38	25.7			19.9	7.6	32.6	20.3	39.3	27	45.3	33	58	45.7	70.7	58.4
	4+4	30.4	20.5	12.4	2.5	25.1	15.2	37.8	27.9	44.5	34.6	50.5	40.6	63.2	53.3	75.9	66
	3+3	22.8	15.4	17.5	10.1	30.2	22.8	42.9	35.5	49.6	42.2	55.6	48.2	68.3	60.9
	2+2	15.2	10.3	22.6	17.7	35.3	30.4	48	43.1	54.7	49.8	60.7	55.8
PP20S	6+6	104.7	65.8					70.5	31.6	85.2	46.3	99.7	60.8	129	90.1	158.2	119.3
	5+5	87.2	54.8			52.2	19.8	81.5	49.1	96.2	63.8	110.7	78.3	140	107.6	169.2	136.8
	4+4	69.8	43.9	33.8	8	63.1	37.2	92.4	66.5	107.1	81.2	121.6	95.7	150.9	125	180.1	154.2
	3+3	52.3	32.9	44.8	25.4	74.1	54.7	103.4	84	118.1	98.7	132.6	113.2	161.9	142.5
	2+2	34.9	21.9	55.8	42.8	85.1	72.1	114.4	101.4	129.1	116.1	143.6	130.6
